Semi Automatics

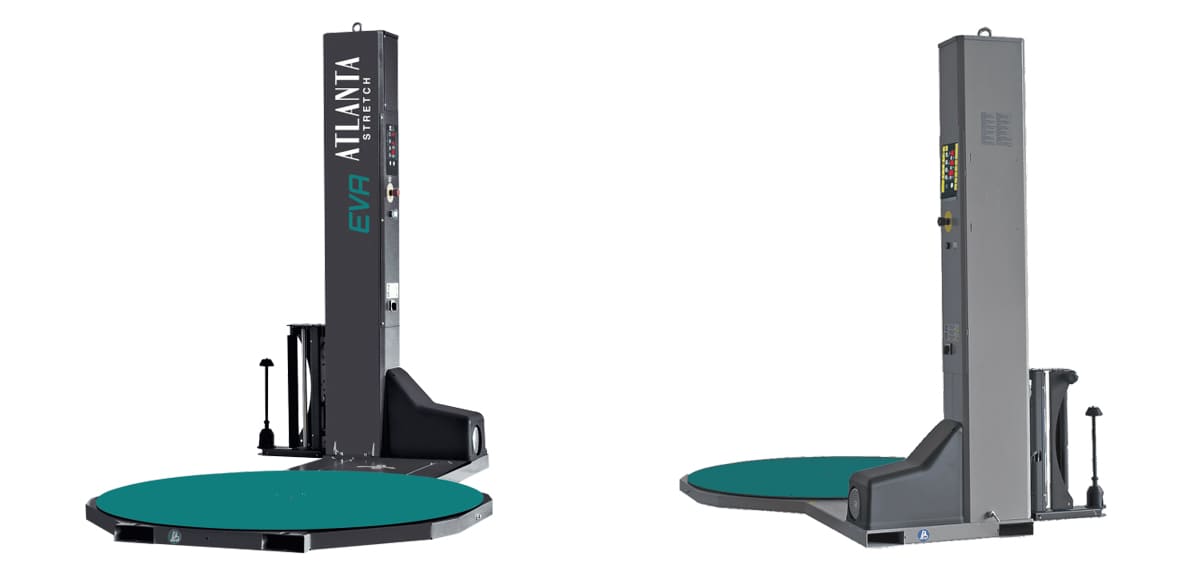

Atlanta Stretch Wrapping Machine - EVA

The EVA semi-automatic wrapping machine was initially designed as an entry-level model and remains the best choice for small businesses seeking cost savings without compromising on load wrapping quality. It features a mechanical brake-type film carriage system and is suitable for low-volume pallet wrapping, typically handling fewer than 15 pallets per day.

SPECIFICATIONS

Model ATLANTA STRETCH - EVA
Turntable Speed 5 - 12 Rpm
Turntable Diameter 1500 Max , Option( Available )
Wrap Height 2200 mm
Output Capacity 20 Pallets Par Hour
Max.Load Dimension 800x1200 mm
Max. Load Weight 1500 Kg
Recommended thickness for stretch-film From 10 to 23 µm

OPTIONS

  • Soft stop / start facilitated by frequency changer

  • Photocell detection of load height

  • Front and rear lifting with fork lift truck

  • Precise turntable phase stopping at cycle end

APPLICATION

Atlanta Stretch Wrapping Machine - EVA It is widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemicals, food, beverages, building materials and other industries
