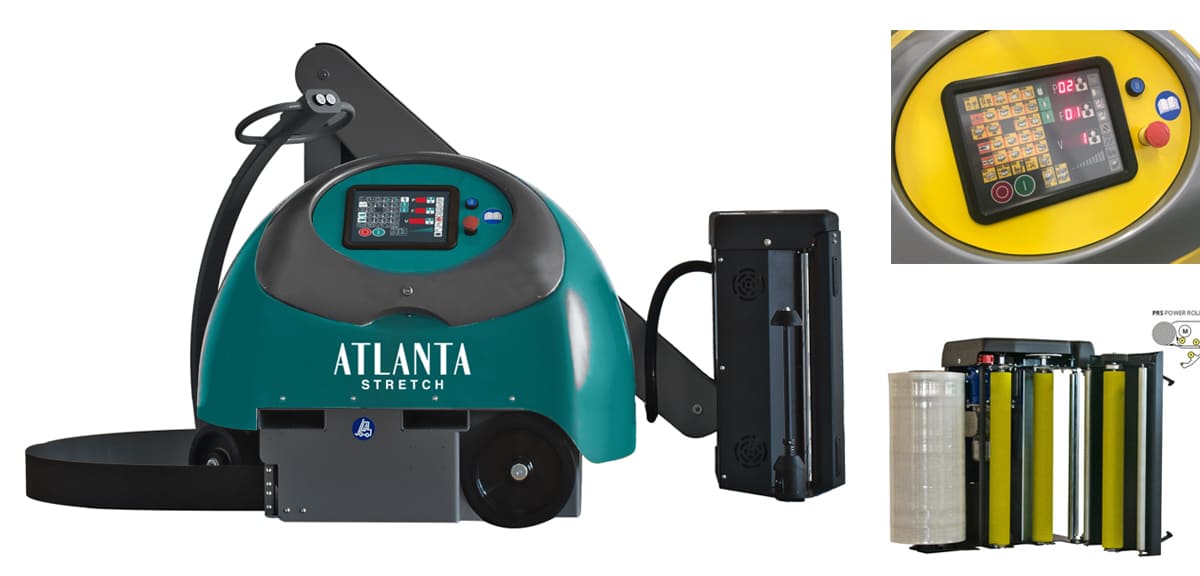

Atlanta Stretch Wrapping Machine - SFERA WITH ARM

SFERA, initially a cost-effective model, can adapt to your business's evolving needs. It delivers exceptional value for your investment, making it the ultimate packaging machine equipped with a pre-stretch film system. If you opt for the FM carriage model, it's easy to upgrade to our power pre-stretch system, which can be supplied with one or two motors to meet your specific requirements.

The user-friendly 11-inch TOUCH SCREEN operating panel allows you to configure various parameters, ensuring top-quality wrapping patterns. Our advanced PLC offers up to 99 programs, catering to diverse wrapping patterns for a wide range of products. This machine is well-equipped for pallet wrapping in the 21st century.

SPECIFICATIONS

Model ATLANTA STRETCH - SFERA ARM
Adjustable Spool carriage speed From 1,3 up to 5,4 m/min
Wrap Height 2000 mm
Output Capacity 35 Pallets Par Hour
Min pallet dimension 600 x 600 mm
Carriage braking system FM (FTL=Force to load)
Recommended thickness for stretch-film From 10 to 23 µm

OPTIONS

  • Magnetic brake system FE

  • One Pre-Stretch - OPRS carriage

  • Precise stopping at cycle end

  • Power Pre-Stretch One Motor PRS

  • Power Pre-Stretch Two Motors PS

  • Roping system

APPLICATION

Atlanta Stretch Wrapping Machine - SFERA WITH ARM It is widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemicals, food, beverages, building materials and other industries
