Semi Automatics

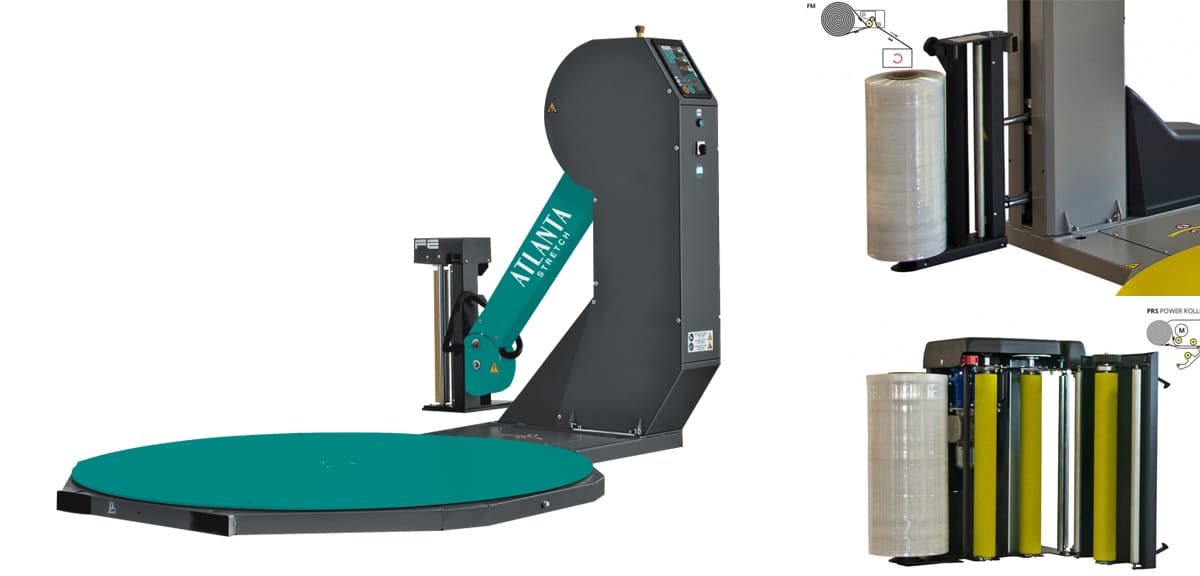

Atlanta Stretch Wrapping Machine - SYNTHESI WITH ARM

SYNTHESI, initially a cost-effective model, is designed to adapt to your business needs. It offers outstanding value for your investment, serving as the optimal packaging machine equipped with a pre-stretch film system. The user-friendly 11″ TOUCH SCREEN operating panel allows you to configure various parameters to ensure the highest quality wrapping patterns. Our enhanced version PLC (Programmable Logic Controller) supports up to 99 programs, catering to a wide range of wrapping patterns for different and diverse products. In essence, this machine is well-prepared for 21st-century pallet wrapping needs.

SPECIFICATIONS

Model ATLANTA STRETCH - SYNTHESI ARM
Turntable Speed 5 - 12 Rpm
Turntable Diameter 1500 Max , Option( Available )
Wrap Height 2400 mm
Output Capacity 25 Pallets Par Hour
Max.Load Dimension 800x1200 mm
Max. Load Weight 1200 Kg
Recommended thickness for stretch-film From 10 to 30 µ​m

OPTIONS

  • Horse shoe turntable 1650 / 1800 mm

  • Top pressure plate round / rectangular

  • Magnetic brake system FE

  • Power Pre-Stretch One Motor PRS

  • Power Pre-Stretch Two Motors PS

  • Loading ramp & Roping system

APPLICATION

Atlanta Stretch Wrapping Machine - SYNTHESI WITH ARM It is widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemicals, food, beverages, building materials and other industries
